IEC 62133 Battery Testing Equipment Electric Vibration Testing System

Name: IEC 62133 Battery Testing Equipment Electric Vibration Testing System
Brand: HongCe
Price: 1 USD

Quality IEC 62133 Battery Testing Equipment Electric Vibration Testing System for sale

Brand Name : HongCe

Model Number : HCVT01

Certification : Calibration Certificate(cost additional)

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1 Set per month

Delivery Time : 40 days

Packaging Details : Plywood

Product Name : electrodynamic vibration test system

Tested product : Battery

Frequency range : 1～3000 Hz

Maximum displacemen : 76mm

Rated sinusoidal force : 3000kgf （30kN)

Vertical table : 1500mm×1500mm (customisable)

Horizontal table : 1500mm×1500mm (customisable)

Fan Power : 7.5KW

Contact Now

Electric Vibration Testing System IEC 62133 Battery Testing Equipment

Application of Battery Testing Equipment:

Vibration encountered of the battery during transportation shall not cause leakage, fire or explosion. The electrodynamic vibration test system is a precision test equipment that simulates the actual working environment of a battery.

The vibration test system consists of four parts: vibration test bench, power amplifier, controller and cooling fan.

Standard of Battery Testing Equipment:

IEC 62133-1 Secondary cells and batteries containing alkaline or other non-acid electrolytes -Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications - Part 1:Nickel systems clause 7.2.2;

UN38.3 T3:Vibration

Parameter of Battery Testing Equipment:

Electric Vibration Test bench
Rated sinusoidal force (peak)	3000kgf (30kN)
Rated random force (peak)	3000kgf (30kN)
Rated shock force (peak)	6000kgf (60kN)
Frequency range	1～3000 Hz
Maximum displacement (p-p)	76mm
Maximum Acceleration	980m/s²(100g)
Maximum load	500 kg
Table diameter	Ф320mm
Equivalent mass of moving parts	30kg
Table screw	12×M12
Dimension L×W×H	1940×1640×1100mm
Weight	About 3100kg
Power Amplifier
Amplifier Output	35KVA
Output Voltage	120Vrms
Signal to Noise Ratio	>65dB
Power Amplifier Efficiency	＞95%
System Protection	Temperature protection, over-displacement protection, over-voltage protection, over-current protection, under-voltage protection, external protection, logic fault protection
Dimensions	580×1020×1800mm
Weight	600kg
Vertical extension table
Table Size	1500mm×1500mm
Table Weight	350kg
Highest frequency	200Hz
Material	Aluminium alloy
Horizontal Slide Table
Table Size	1500mm×1500mm
Table Weight	350kg
Highest frequency	200Hz
Material	Aluminium alloy
Vibration controller
Functions Based on Windows 7 operating system	Basic functions: Sine, Random, Random+Sine, Random+Random, Typical Shock, Resonance Search and Dwell, Transient Shock, Shock Response Spectrum. 2 input channels, 1 output channel, 1 COLA output, reserved with the environmental test chamber linkage interface function (digital I / O interface)
Fan
Fan Power	7.5KW
Air volume	0.52M³/s
Wind Pressure	5.8Kpa
Dimensions	11008001400mm
Duct length	4m
Weight	140kg
Accelerometer
Frequency Range	0.3-8000Hz±10%
Measuring Range	2000g
Impact Resistance	2500g
Line length	5m
Operating Temperature	-40-150℃
Weight	35Gram
Installation Method	M5

Product Tags:

IEC 62133 Battery Testing Equipment

Electric Vibration Battery Testing Equipment

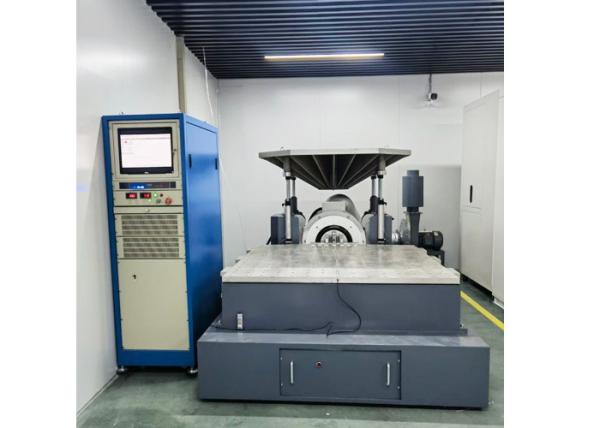

IEC 62133 Battery Testing Equipment Electric Vibration Testing System Images
